Description

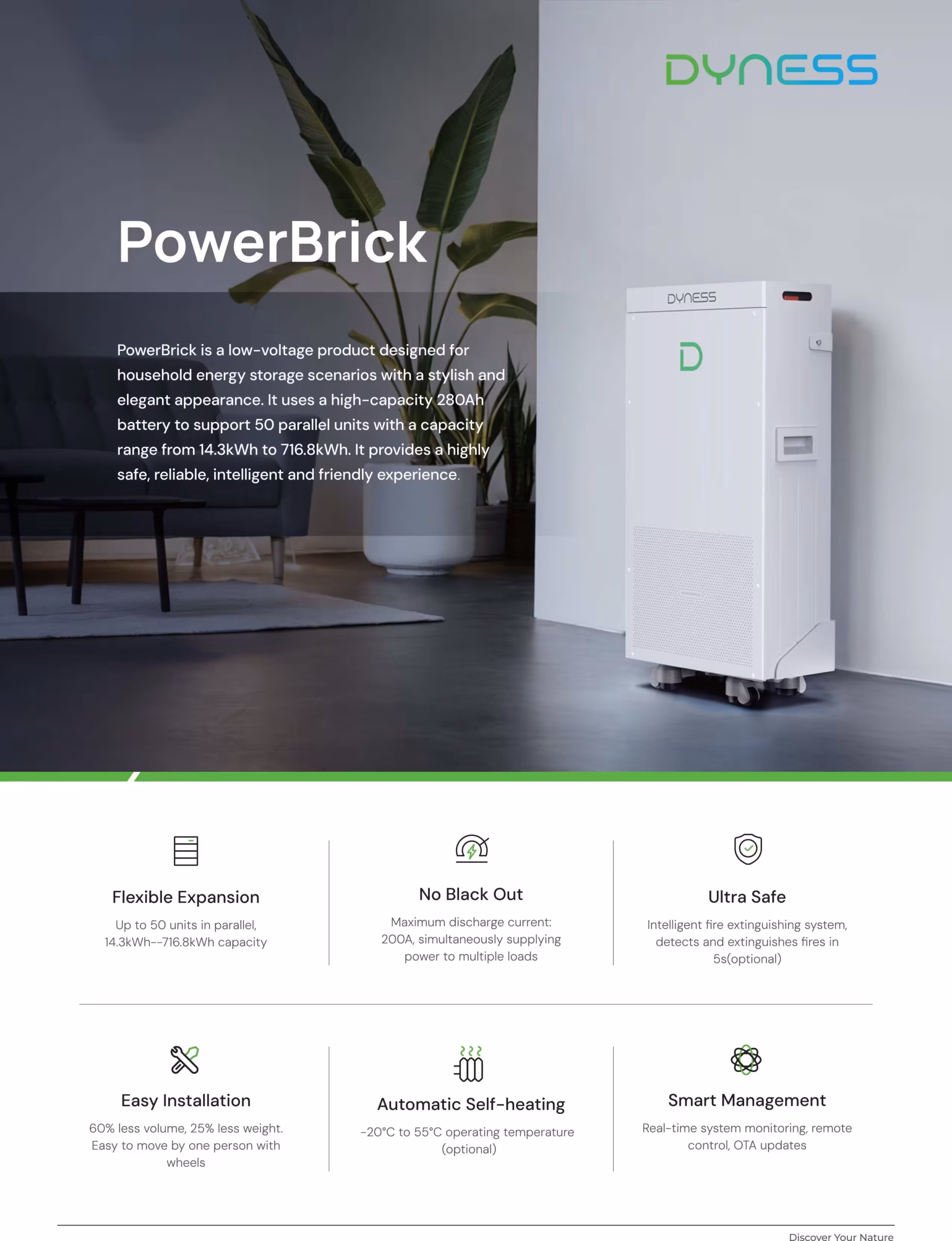

The Dyness PowerBrick delivers a massive 14.3kWh energy capacity, making it ideal for high-demand households and businesses facing long hours of load-shedding in Pakistan.
With an industry-leading 95% depth of discharge, you get maximum usable energy—perfect for running multiple heavy appliances simultaneously. The 280Ah high-capacity cells ensure strong, stable output for demanding loads.
👉 Real Use Case:
- Runs multiple inverter ACs (1–1.5 ton)
- Supports fridge, deep freezer, washing machine, fans & lights together
- Ideal for offices, shops & solar hybrid systems
🛡️ Safety & Reliability
This battery sets a new standard in safety with its built-in intelligent fire extinguishing system, capable of detecting and suppressing fire within seconds.
Advanced Protection Features:
- 🔥 Aerosol fire suppression system
- 🧠 Intelligent BMS protection
- ⚡ Overcharge / over-discharge protection
- 🌡️ Temperature management with optional self-heating
Built with LiFePO4 (LFP) technology, it offers superior thermal stability and safety compared to traditional lithium batteries.
🔗 Compatibility & Smart Features
Designed for seamless integration with top inverter brands in Pakistan, including:
- Growatt
- GoodWe
- Deye
- Solis
- SMA
- Victron Energy
- Schneider Electric
- Sineng
- Maxpower
- Solarmax
- Fox
- Sofar
Smart Features:
- 📱 Built-in WiFi + Mobile App Monitoring
- 🔄 OTA Remote Updates
- 🔗 Communication: CAN / RS485
- 🔧 Easy installation with compact design (60% less volume)
Scalability:
- Expand from 14.3kWh to 716kWh (50 units)
Perfect for future expansion and commercial-scale systems

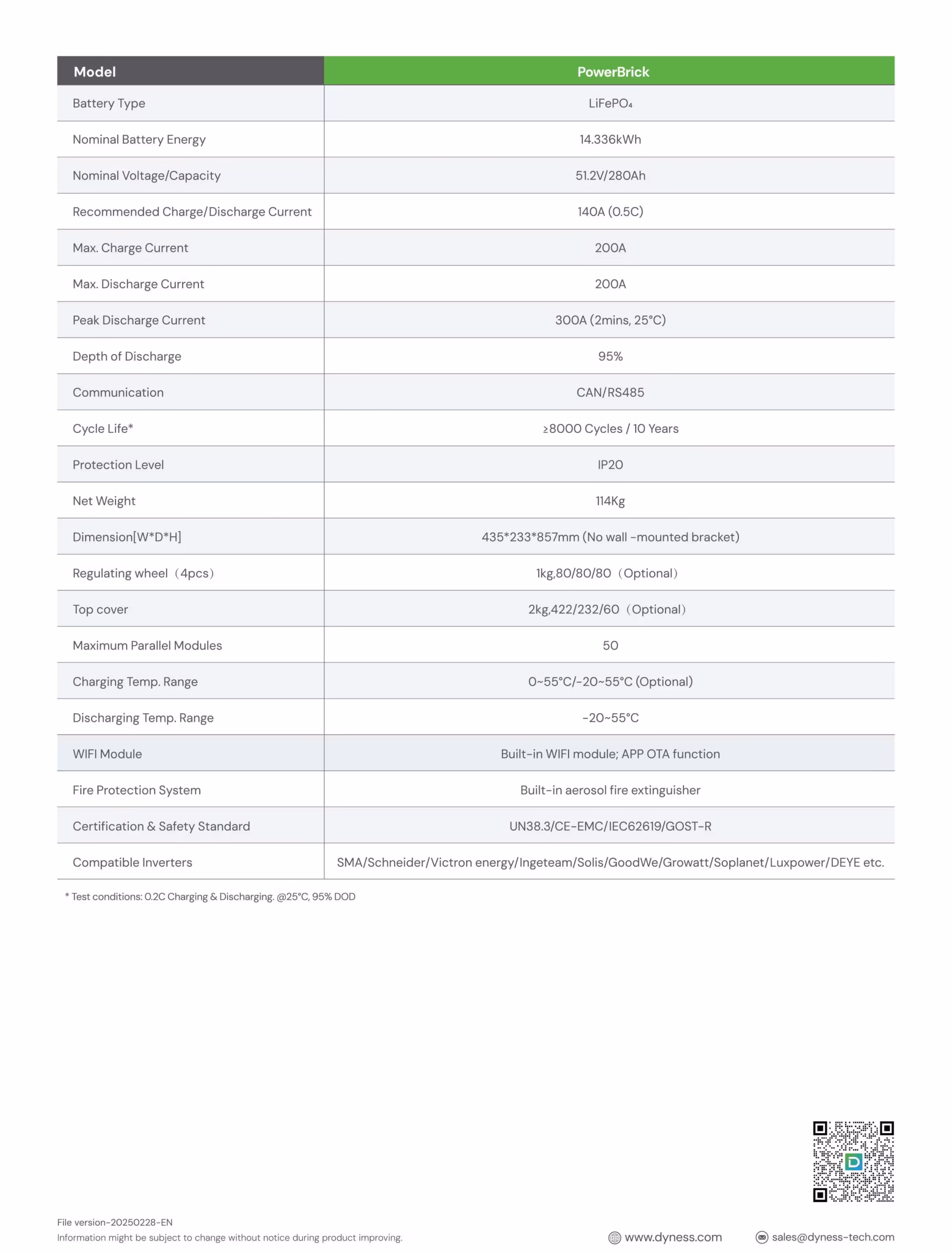

📊 Technical Specifications Table
| Specification | Details |
|---|---|
| Model | PowerBrick |
| Battery Type | LiFePO4 (LFP) |
| Nominal Energy | 14.336 kWh |
| Nominal Capacity | 280Ah |
| Nominal Voltage | 51.2V |
| Recommended Current | 140A |
| Max Charge Current | 200A |
| Max Discharge Current | 200A |
| Peak Current | 300A (2 min) |
| Depth of Discharge | 95% |
| Cycle Life | 28000 Cycles |
| Operating Temp (Charge) | 0°C to 55°C |
| Operating Temp (Discharge) | -20°C to 55°C |
| Weight | ~114kg (corrected typical for this class) |
| Dimensions | 435 × 233 × 857 mm |
| IP Rating | IP20 |
| Expansion | Up to 50 Units |
| Communication | CAN / RS485 |
| Monitoring | WiFi + App |
| Fire Protection | Built-in Aerosol System |
| Certifications | UN38.3, CE, IEC62619 |
