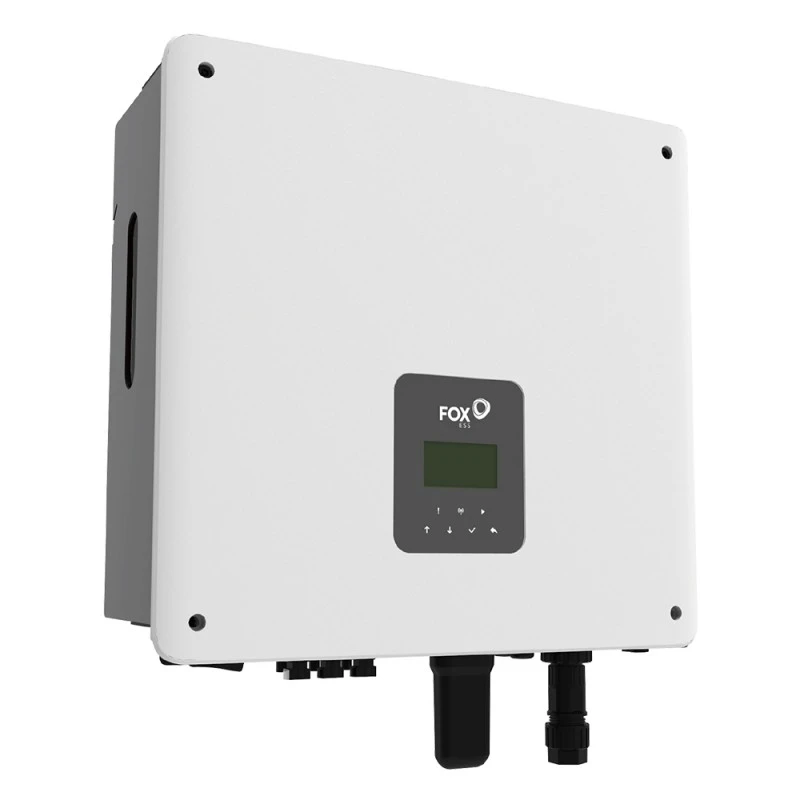

FoxESS 4.6kW Single-Phase Hybrid Inverter (H1-4.6-E-G2) | Dual MPPT | High-Voltage Battery Compatible | IP65

-1%

FoxESS 4.6kW Single-Phase Hybrid Inverter (H1-4.6-E-G2)

Name: FoxESS 4.6kW Single-Phase Hybrid Inverter (H1-4.6-E-G2) - Vertex Solar
SKU: FOX-H1-4.6-E-G2-HYB
Price: 158000 PKR
Availability: InStock

Original price was: ₨ 160,000.Current price is: ₨ 158,000.

Maximize your energy independence with the FoxESS 4.6kW (H1-4.6-E-G2) Single-Phase Hybrid Inverter. This next-generation 4.6kW hybrid solution is engineered for high-efficiency energy storage, supporting up to 9200W Max DC input. Designed for peak performance, it is fully compatible with high-voltage batteries for maximum round-trip efficiency and features an IP65 rating for flexible outdoor installation. With a powerful 6kW charge/discharge rate and a rapid switch time of less than 10ms, the H1-4.6-E-G2 ensures your home stays powered during grid outages.

Key Specifications:

Rated Output Power: 4600W
Max. DC Input Power: 9200W (Allows for 200% DC oversizing)
Battery Type: High-Voltage Lithium (LFP)
Max. Efficiency: 97.40%
EPS Back-up Power: 4600VA
Installation: Easy plug-and-play with built-in fuse protection

SKU: FOX-H1-4.6-E-G2-HYB Categories: Fox, Hybrid, Solar inverter Tags: 4.6kW Hybrid Inverter, EPS Function, FoxESS H1 G2, FoxESS H1-4.6-E-G2, H1 Series G2, High Voltage Hybrid, IP65 Inverter, Single Phase Storage Inverter, Solar Battery Inverter Brand: Fox

Description
Reviews (0)

Description

The FoxESS H1(G2) Series represents a “ground-breaking range of Hybrid & AC inverters” designed to harness the power of the sun day and night. The H1-4.6-E-G2 is a “refined, powerful, and flexible” solution that offers unparalleled efficiency for modern residential energy storage systems.

High-Voltage Performance & Yield

The H1-4.6-E-G2 is built for high-performance management. It features two independent MPP trackers with a wide operating voltage range of 80V to 550V, ensuring optimal energy harvest even in challenging conditions. By utilizing high-voltage batteries (80-480V), the system achieves superior round-trip efficiency compared to traditional low-voltage systems.

Reliable EPS & Emergency Power

Never be left in the dark. In the event of a grid failure, this inverter provides a robust Emergency Power Supply (EPS) with a 4600VA apparent power output. With a switch time of less than 10ms, the transition to battery power is virtually instantaneous, protecting your sensitive home electronics.

Smart Monitoring & Advanced Safety

Stay connected with Advanced System Monitoring via FoxCloud V2.0. Users can monitor performance in real-time via a smartphone app or web portal. Safety is paramount, featuring integrated DC Type II and AC Type III Surge Protection (SPD), insulation monitoring, and an optional AFCI function to prevent arc-fault fire risks.

Why Choose the FoxESS H1-4.6-E-G2?

Compact & Quiet: Natural cooling technology ensures a quiet operation (<35dB), perfect for residential environments.
Future-Ready: Includes SG Ready communication for smart grid integration and supports RS485, DRM, and CAN interfaces.
Built to Last: Engineered with a non-isolated topology and housed in an IP65 enclosure to withstand outdoor elements.

Technical Specification Table

Technical Attribute	Specification
Model Number	H1-4.6-E-G2
Rated Output Power	4,600 W
Max. DC Input Power	9,200 W
Max. Input Voltage	600 V
MPPT Operating Range	80 V – 550 V
Max. Efficiency	97.40%
Battery Voltage Range	80 V – 480 V
Max. Charge/Discharge Current	40 A
Ingress Protection	IP65
Weight	22 kg
Dimensions (WHD)	434 * 418 * 185 mm
Cooling Method	Natural
