Description
Specifications

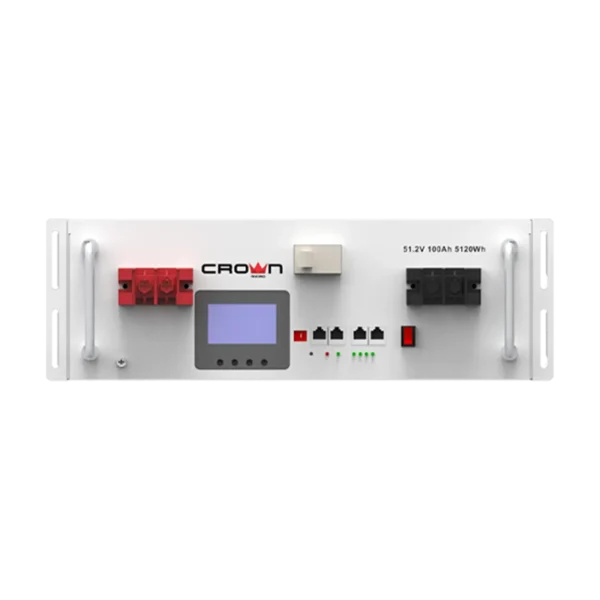

- Model: Crown 51.2V-100Ah Lithium-Ion Battery
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Usable Energy: 5.12 kWh
- Operating Voltage Range: 44.8V – 57.6V
- Rated Charge/Discharge Power: 5.0 kW
- Peak Discharge Power (5 sec): 7.0 kW
- Round-Trip Efficiency: >95%
- Cycle Life: >6000 cycles @ 80% DoD
- Scalability: Supports parallel connection (multiple units for higher capacity)
- Communication Interfaces: RS485 / CAN
- Protection Features: Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature Protection, Cell Balancing
- IP Rating: IP65 (Indoor/Outdoor use)
- Operating Temperature: Charge: 0°C to +55°C / Discharge: –20°C to +55°C
- Storage Temperature: –20°C to +60°C
- Dimensions: Approx. 442 × 420 × 132 mm
- Weight: \~45 kg
- Certification: CE, UN38.3, IEC 62619
- Warranty: 5 Years Standard (Extendable depending on supplier)
Why choose this product?
Engineered to meet rigorous quality standards, the product offers strong after-sales support and compatibility with common solar components. Please consult the manufacturer datasheet for exact electrical specifications and installation requirements.
